High-quality, high-performance, innovative product (patented invention)

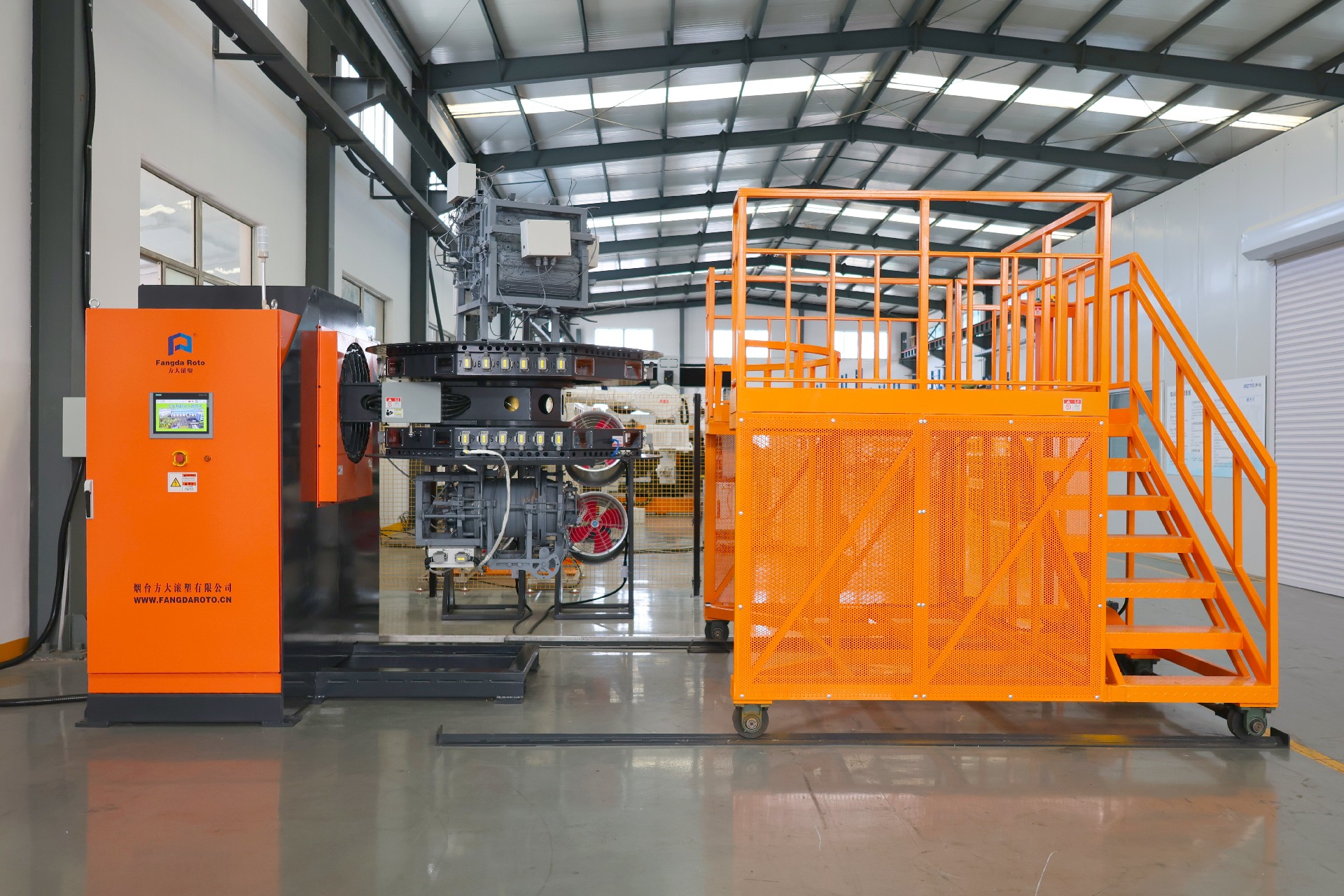

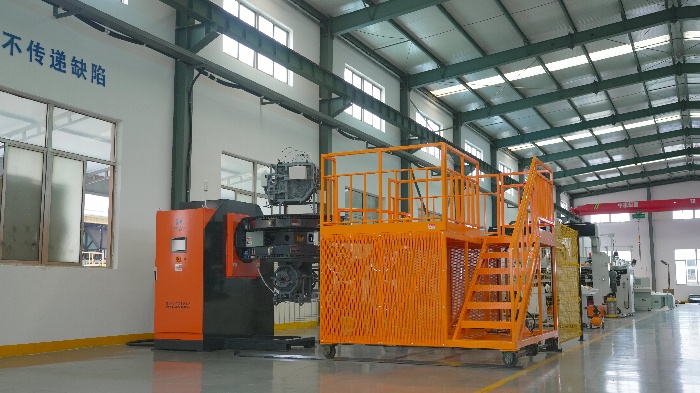

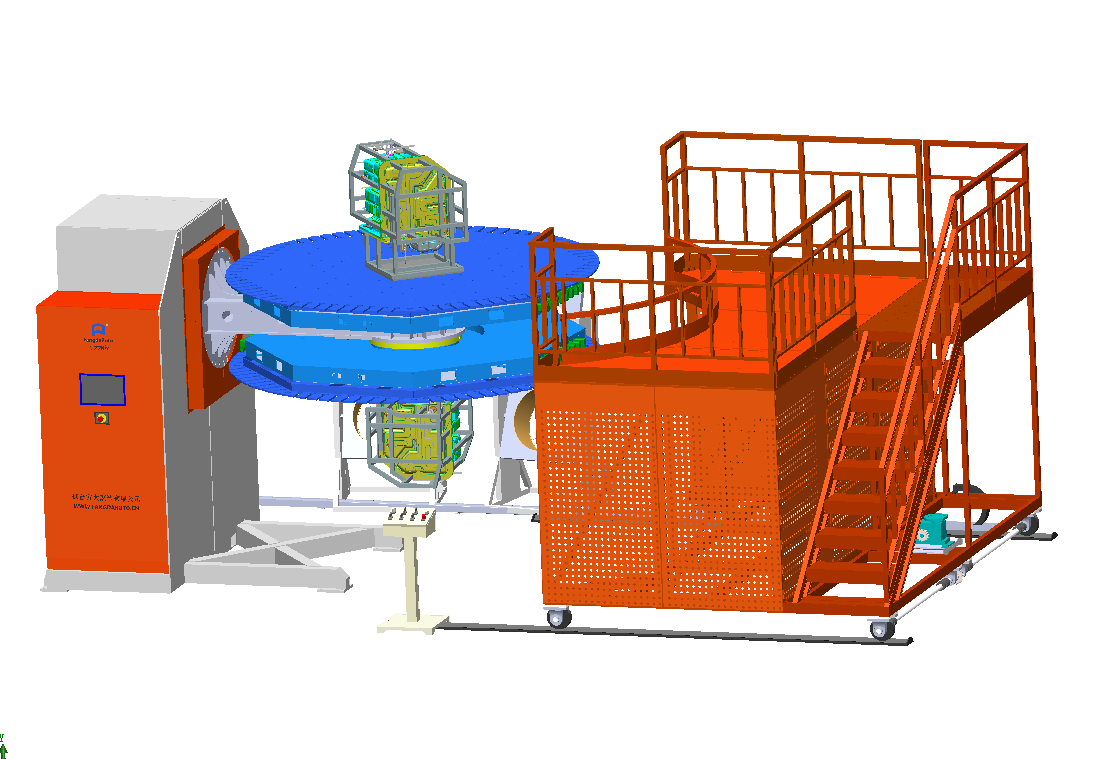

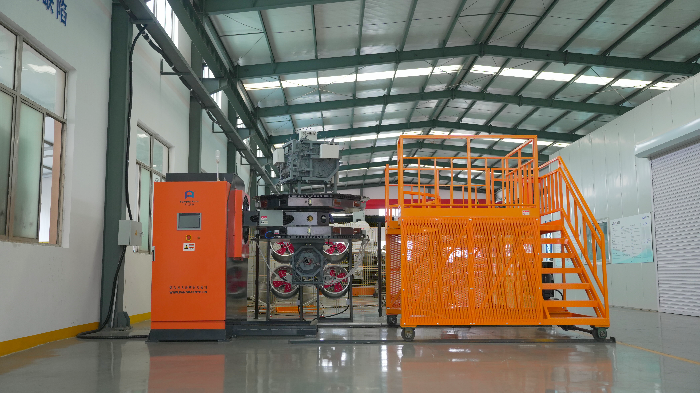

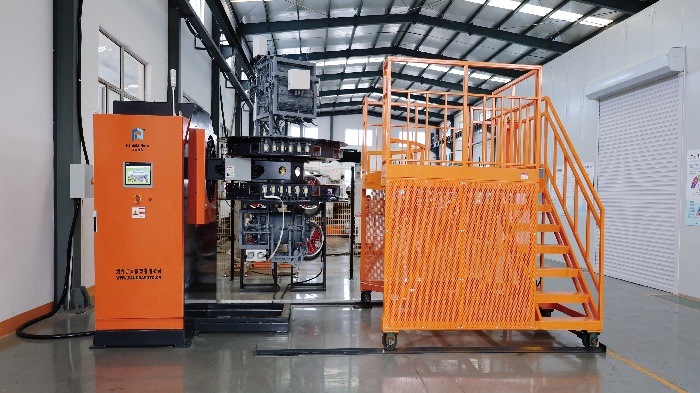

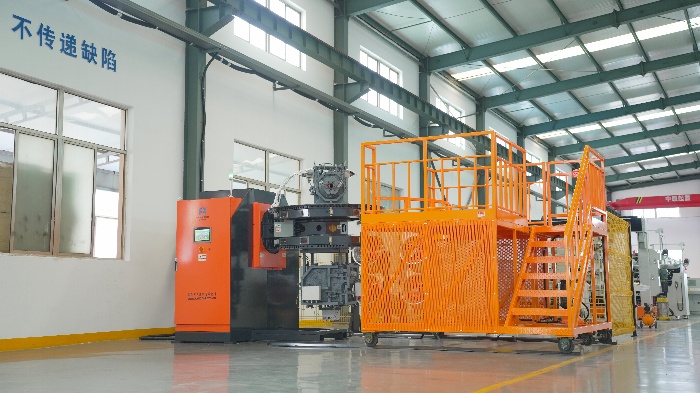

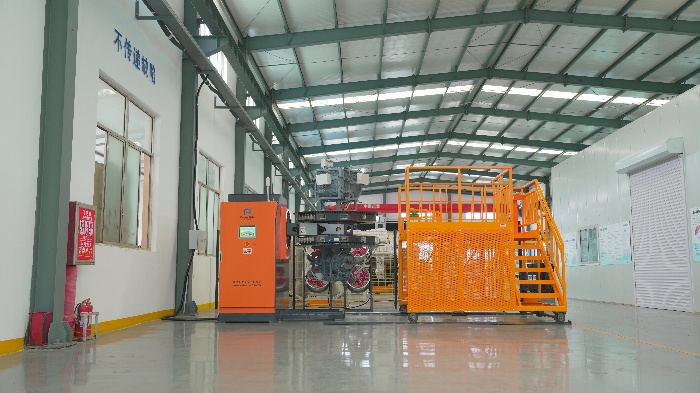

Fangda New Creation electric heating rotomolding machine.During the double-axis rotation process,the equipment drives the mold equipped with heating tubes and precise temperature measurement probes to rotate.With rotation and heating,all polymers adhere to the mold.When the temperature inside the mold reaches the predetermined value,the mold begins to cool.Once the temperature inside the mold drops to the predetermined value,the mold is opened and the formed product is taken out.
· This equipment is equipped with a double mold platform,doubling the efficiency;
·Supports manual/automatic mold opening,reducing labor costs and improving production efficiency;
· Can achieve balanced cooling inside and outside the mold,improving product quality,reducing cooling time, and increasing production efficiency.
The electric heating rotomolding machine uses electricity as the
heatsource,has no open flame,no exhaust emissions,high temperature control
accuracy,and no need for gas support. It is suitable for production scenarios
with strict environmental control requirements, as well as those demanding high
consistency in product quality and environmental safety. For example, the shells
of floor cleaning machines,military boxes, injection-molded furniture,
injection-molded oil tanks,and other high-end products,as well as other
injection-molded products for sectors such as transportation equipment,
construction machinery,tourism and leisure, outdoor home
furnishings,military/special equipment,etc.,can all be applied with this
equipment.
Two upper and lower mold platforms,double the production efficiency;
Mold opening supports both manual and automatic modes; higher production efficiency;
Uniform cooling inside and outside the mold,better product quality,shortercooling time;
Energy saving:40%more energy-efficient than gas equipment;
Available heat sources:electric heating;
Real-time monitoring of temperatures on and inside the mold, better product quality;
Stable quality,reasonable structure,convenient operation,higher efficiency.
Model | Overall dimension | Weight (kg) | ||
L（m) | W(m) | H(m) | ||
| FDE-2100 | 6 | 3.8 | 3.3 | 3000-4000 |
| FDE-2600 | 7 | 4.3 | 3.8 | 4000-4500 |
| FDE-3100 | 8 | 4.8 | 4.3 | 4500-5000 |

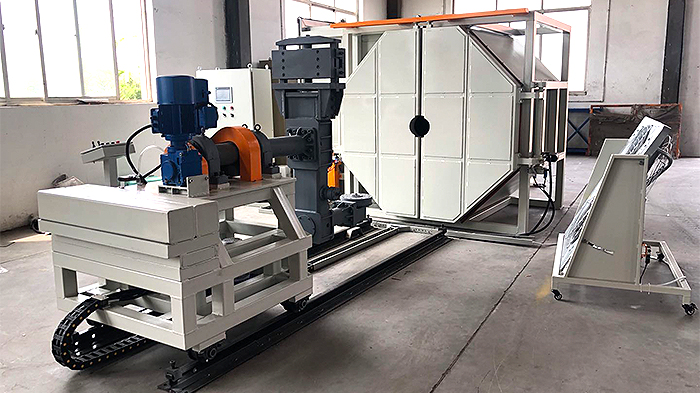

Straight arm

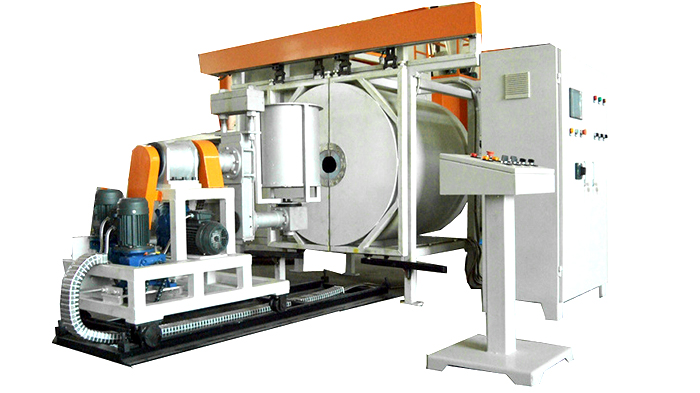

L-arm
C-arm
